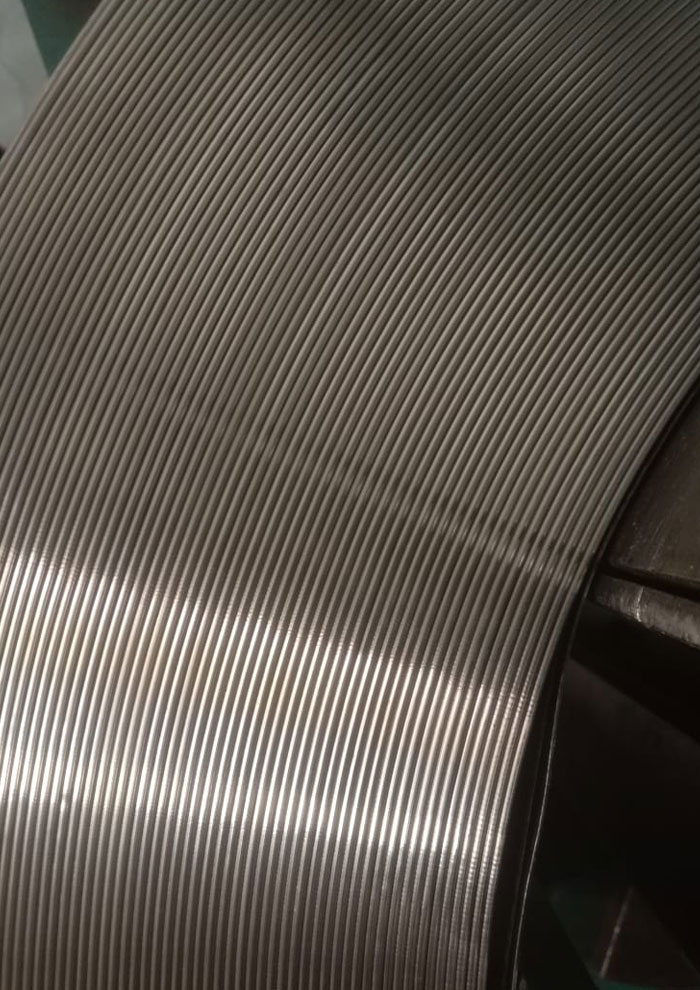

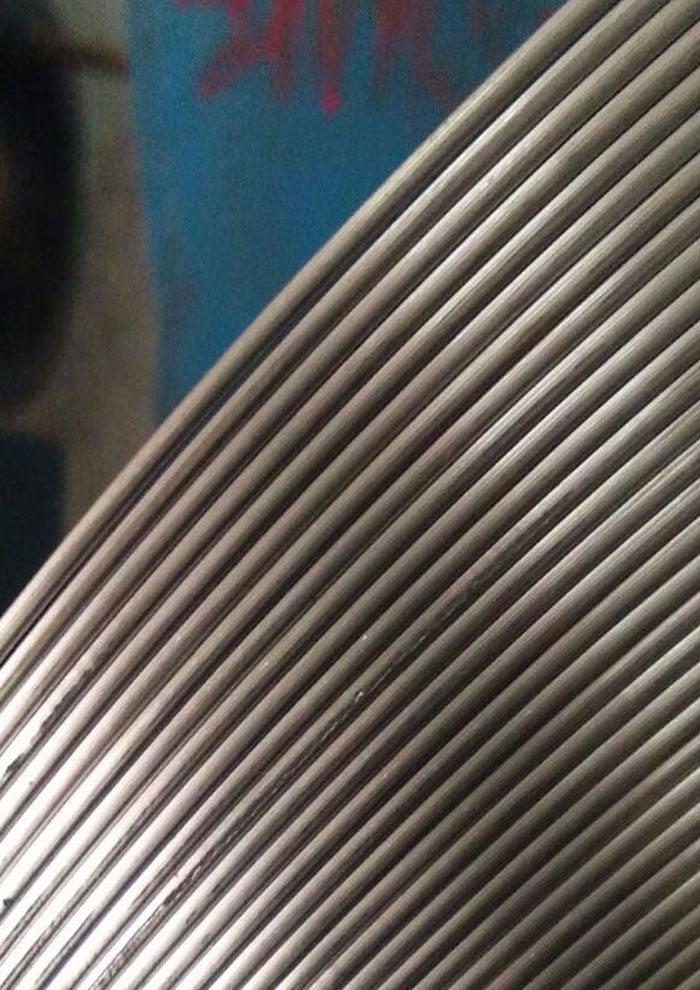

We have facility to supply material if Customer's require Round Edge One Side or Both Side. Our Round Edge width Range will be 8.00mm to 80mm . And in Thickness from 2.00mm to 0.30mm.
| Grade | Chemical Composition: | ||||||
| Indian Standard | En Series | SAE-Series | C% | Mn% | Si% (Max) | S% | P% |
| 80 C6 | EN-42J | SAE-1080 | 0.75-0.85 | 0.50-0.80 | -0.35 | Max.04 | Max.04 |
These strips can be sheared with low burrs to customer’s width requirements. On request and short lead time tailor made Strips can be produced as per customers requirement of hardness, width surface finish & different edges. Please check for Minimum economic batch quantity & lead time.
|
Size |
Hardness |
Surface Finish |
|
260 x 3.00 mm |
44-46 |
Bright |
|
205 x 2.50 mm |
44-46 |
Bright |
|
205 x 2.00 mm |
44-49 |
Bright |
|
152.4 x 2.00 mm |
44-49 |
Bright |
|
152.4 x 1.80 mm |
44-49 |
Bright |
|
205 X 1.60mm |
44-49 |
Bright |
|
152.4 x 1.60 mm |
44-49 |
Bright |
|
305 x 1.50 mm |
44-48 |
Bright |
|
152.4 x 1.40 mm |
44-49 |
Bright |
|
152.4 x 1.20 mm |
44-49 |
Bright |
|
200/150 x 1.00 mm |
44-49 |
Bright |
|
150/125 x 0.90mm |
44-47 |
Bright |
|
150/125 x 0.80mm |
44-47 |
Bright |
|
150/125 x 0.70mm |
44-47 |
Bright |
|
175/158 x 0.60mm |
44-47 |
Bright & Blue |
|
101.6 x 0.55 mm |
44-47 |
Bright & Blue |
|
205/152.4 x 0.50 mm |
44-49 |
Bright |
|
101.6 x 0.50 mm |
44-47 |
Blue |
|
152.4 x 0.45 mm |
44-47 |
Bright |
|
101.6 x 0.45 mm |
48-50 |
Blue |
|
152.4 x 0.40 mm |
48-50 |
Bright |
|
100 x 0.35 mm |
48-50 |
Bright/Blue |
|
152.4 x 0.30 mm |
48-50 |
Bright |
|
100 x 0.30 mm |
48-50 |
Blue |
|
152.4 x 0.25 mm |
48-50 |
Bright |
|
101.6 x 0.25 mm |
48-50 |
Blue |
|
152.4 x 0.20 mm |
48-50 |
Bright |
|
100 x 0.20 mm |
48-50 |
Blue |
|
152.4 x 0.15 mm |
48-50 |
Bright |
|
152.4 x 0.12 mm |
48-50 |
Bright |
|
152.4 x 0.10 mm |
48-50 |
Bright |
